How I create RSA key and enable SSH access in Cisco VG202, in a Cisco router I use the next commands(but in a VG not exists): conf t. Crypto key generate rsa modulus 1024. Jun 11, 2019 SW1 ( config)# crypto key generate rsa. How many bits in the modulus 512: 1024% Generating 1024 bit RSA keys, keys will be non-exportableOK Set the size of key to 1024 bits. If your Cisco Switch is running an older version of Cisco IOS image, then it is extremely recommended that you upgrade to latest Cisco IOS. Run show crypto key mypubkey rsa to see if you do, in fact, have a key fully generated and registered under a non-default name. If there is, then you can tell the ssh process to use this key with ip ssh rsa keypair-name xxx.If the first command doesn't show anything useful then I'd say you can go ahead and generate a new key. How to configure SSH on Cisco IOS. (config)#crypto key generate rsa The name for the keys will be: R1.NETWORKLESSONS.LOCAL Choose the size of the key modulus in the range of 360 to 4096 for your General Purpose Keys. Choosing a key modulus greater than 512 may take a few minutes. SSH is a secure method for remote access to your router.
Configuration of SSH on Cisco Switch in Packet Tracer 2019
This Article is about the configuration of SSH on Cisco Switch. You can configure SSH on Cisco devices very easily using these simple steps:
- Crate a Packet Tracer Topology Lab
- Basic IP Setting for connectivity
- Set hostname and domain-name on Switch
- Set console and enable password for SSH login
- Generate the RSA Keys
- Setup the Line VTY configurations
- Create the username password for SSH access from PC
- Verify SSH access
For the configurations of SSH in packet tracer on Cisco switch, you are required to follow the above steps. Let start and perform these steps one by one. (Learn what is PSSH)
Crate a Packet Tracer Topology Lab
Generate Crypto Key On A Switch Iphone
Our first step is to open the packet tracer and need to create a simple lab. For this topology we will use only one switch and a PC. Simply drag these two items on dashboard. Now we will connect them with straight through connection.
Basic IP Setting for connectivity
The next step is assign the suitable IP setting to these devices. For keeping it simple and making basic connectivity we will assign just two IP address to these device. We will assign the IP address to PC. For this will open the PC setting and then IP configuration. Here we will assign an IP address to host, in our case we are going to assign it 192.168.1.1 with the default gateway. For default gateway we will assign the IP address 192.168.1.10. We assign the second IP address to our Vlan1 interface on switch. And its IP address will be the gateway of host that is 192.168.1.10. For this we will use the basic commands.Switch> enable
Switch# config t
Switch(config)#interface vlan 1
Switch (config-if)# ip address 192.168.1.10 255.255.255.0
Switch (config -if)#no shut
Microsoft Office is a set of applications with which we can carry out office tasks, being able to automate and achieve a high level of performance in these tasks thanks to the tools it offers.Microsoft Office Overview:Microsoft Office (MSO) is a program package developed for Microsoft Windows and Mac OS X systems. Microsoft Office 2010 Product Key Generator – Serial KEY For FreeWhat is Microsoft Office?Microsoft Office 2010 product key Generator stands as one of the most popular, versatile and complete office application suites in the world, and its popularization has spread to such an extent that more than 80% of companies use the services of this software on day to day basis. The programs included varying by edition (there are editions for home, business, and academic entities). However, by default, a processor is included in texts (Microsoft Word), a spreadsheet (Microsoft Excel), and a slide show (Microsoft PowerPoint).It is known as “package.” Because, under the same name, the programs and features, and options that are needed to achieve an excellent level of data compatibility are grouped, which will allow us not to depend on several external apps that are rarely compatible with each other.
Once you done with basic IP setting, you can verify the connectivity by pinging the interface vlan1 IP from host.
Set host-name and domain-name on Switch
For SSh configurations you need to configure a host-name and domain-name for your switch you can do this with these simple commands.
Switch # config t
Switch (config)#hostname SW1
SW1 ( config)#ip domain-name w7cloud.com
Set console and enable password for SSH login
For SSH access it is required that you must configure the console and enable password on your cisco switch. You can set these two passwords with following commands.
SW1 ( config)#line console 0
SW1(config-line)#password cisco
SW1(config -line)#logging synchronous
SW1(config- line)#login local
SW1 (config- line)#exit
SW1 # enable secret cisco
Keygen. Microsoft Visual Studio 2008 Registration Key introduces designed tool to optimize the software developers to development environment from Microsoft. It can also runs the computer programs for Microsoft windows, for websites web applications and for web services. Dec 22, 2009 HKEYLOCALMACHINESOFTWAREMicrosoftVisual studio9.0Registration When you select “Registration”, at the right hand side, you would see “PIDKEY” that has 25 alphanumeric characters. That is the product key. If you do not find it under registration, expand “Registration” and select the. Aug 21, 2018 Microsoft Visual Studio 2008 Express Edition Serial Key Serial Numbers. Convert Microsoft Visual Studio 2008 Express Edition Serial Key trail version to full software. Feel free to contact me if you have any questions. Kind Regards Andrea Posted on Sep 30, 2010. The software you're trying to install is an upgrade from the Microsoft Visual. Microsoft Visual Studio 2008 Registration Key introduces designed tool to optimize the software developers to development environment from MicrosoftGet Great Deals on Visual Studio. Download Now At The Official Microsoft Store.Where can I find what license key was used in my installed copy of Visual Studio 2008.
Generate the RSA Keys
Your Cisco switch must have RSA keys that for the SSH process. You can generate the RSA keys with following command:

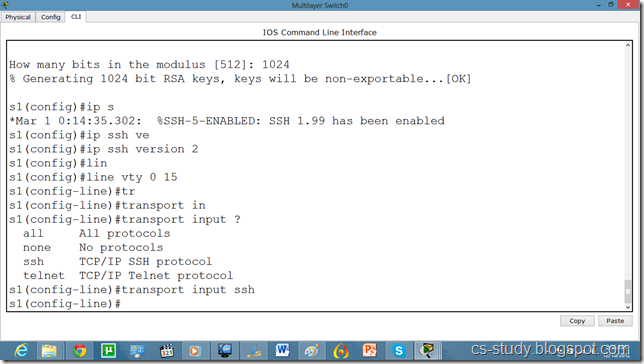

SW1 ( config)# crypto key generate rsa
How many bits in the modulus [512]: 1024
% Generating 1024 bit RSA keys, keys will be non-exportable…[OK]
Set the size of key to 1024 bits.
Crypto Key Generate Command
If your Cisco Switch is running an older version of Cisco IOS image, then it is extremely recommended that you upgrade to latest Cisco IOS.
Setup the Line VTY configurations
For the configuration of SSH on cisco switch you need the following line vty configurations, and input transport is required to set to SSH. Set the login-to-local, & password to 7.
sw1 ( config)#line vty 0 4
sw1 ( config-line)#transport input ssh
sw1( config -line)#login local
sw1(config- line)#password 7
sw1(config- line ) #exit
Create the username password for SSH access from PC
If you do not have a username for SSH access you need to create a username. You can do it with this simple command:
Sw1# config t
sw1 (config ) # username w7cloud password cisco
Make sure the password encryption services is enabled on your switch, this service will encrypt your password, & when you do “sh run”, you’ll see only the encrypted password, not clear text password.
SW1# service password-encryption
Verify SSH access from Host
Once you done with the above configurations you can test all these configuration by creating a SSH connection from Host. You do it the command ssh –l <username> <IP address>. Open the host command prompt and use the command
Generate Crypto Key Cisco
C:>ssh -l waqas 192.168.1.10
It will ask for password, provide the password that you created with this username in previous steps. Then it asked for console password and then you need to provide the enable password. Now you are in your Cisco switch. You can perform switch configurations from your host.
From the switch, if you use the command ‘sh ip ssh’, it will also confirm that SSH is enabled on this cisco swith.
For better understanding please watch the video and like it.
I hope this will be a helpful for you, please share your comments. If you like this then share this on social media. Thank you for reading this.!
